K-80 and K-20 Barrels

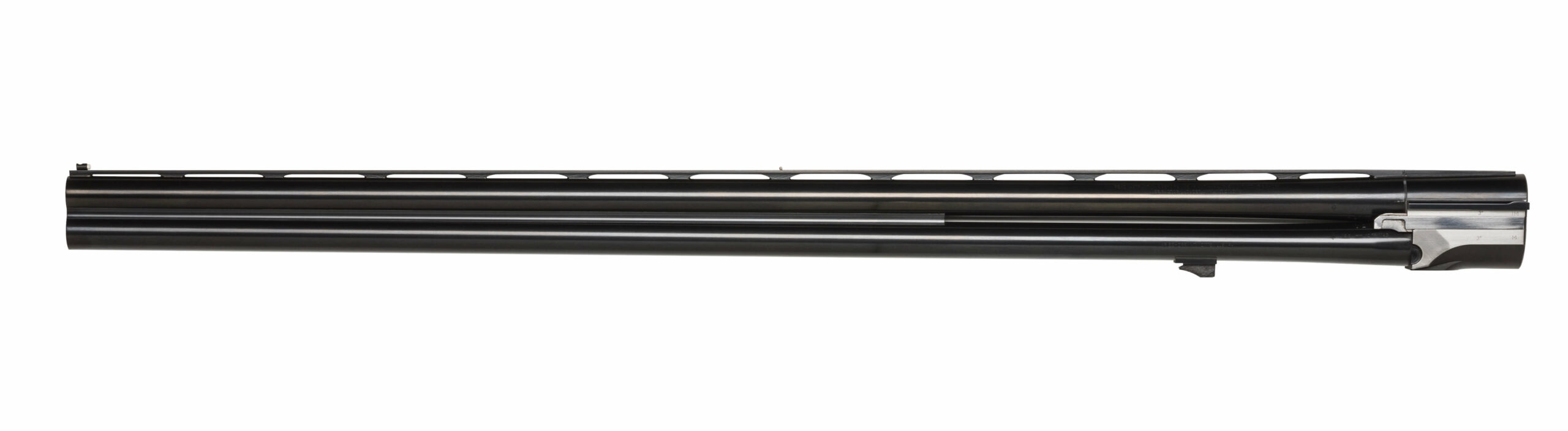

NEW!   K-80 Parcours-X

The New Parcours-X is available in 12 Gauge with a 3″ Chrome lined chamber.  The soldered side rib of the Parcours allows for thinner barrel wall with a lighter weight than the Sporter resulting in quicker performance and optimal field characteristics. The Parcours-X however has a heavier barrel wall than the standard Parcours and a new 10mm-8mm tapered vented rib to fill the gap between the nimble and lively Parcours and the smooth and fluid Sporter.  The new rib is designed without a center tramline and includes brass mid-bead and white pearl front bead to provide a clean sight picture optimized for Sporting Clays and FITASC.  The barrel comes standard in 32″ length with Krieghoff flush-mounted Thin-Wall chokes in Mod & Improved Mod with additional choke sizes optional.

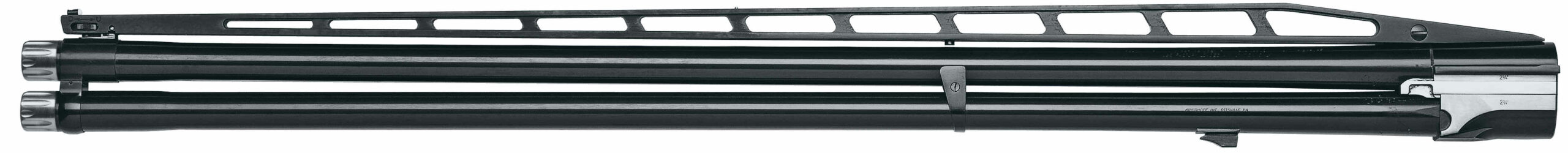

K-80 Trap Special O/U

The Trap Special O/U was developed with feedback from multiple national and international champions to provide the best combination of balance, sight picture and flexibility for today’s competitive Trap shooter.  Available in 30″ and 32″ lengths with a 3″ chrome chamber and floating barrels.  The vented high rib features an adjustable wheel on the front which allows a shooter to adjust the POI from 60/40 to 100% or the ProRib with 80/20 to120% high. The rib is 12mm tapered to 8mm  to provide a wide sight plane without obstructing the side view.  A brass mid-bead and white front bead are standard as well as Krieghoff Titanium Extended Chokes in sizes Full and Mod.  Available in 12 Gauge only.



K-80 Trap Special Unsingle

The Trap Special Unsingle is a single-barrel model for American singles trap and handicap.  Configured as a 34″ length with a 3″ chrome chamber.  The vented high rib features an adjustable wheel on the front which allows a shooter to adjust the POI from 60/40 to 100% or with the Pro Rib with 80/20 to 120% high.  The rib is 12mm tapered to 8mm to provide a wide sight plane without obstructing the side view.  A brass mid-bead and white front bead are standard as well as Krieghoff Titanium Extended Chokes.  The Unsingle can also be combined with the Trap Special Over/Under to make the Trap Special Combo or Pro Trap Special Combo. Available in 12 Gauge only.

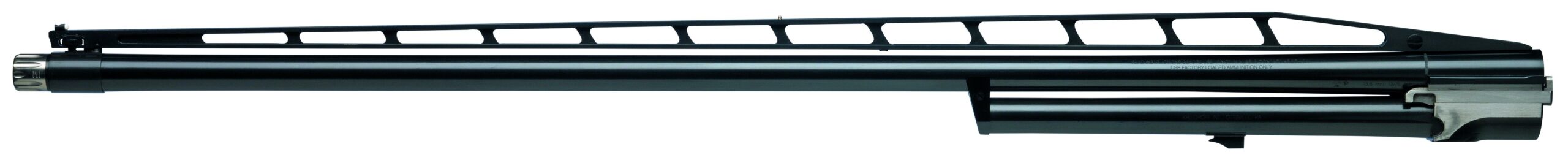

K-80 Trap Special Top-single

The Trap Special Top-single is a single-barrel model for American singles trap and handicap.  Configured as a 34″ length with a 3″ chrome chamber.  The vented high rib features an adjustable wheel on the front which allows a shooter to adjust the POI from 60/40 to 100% or the Pro Rib with 80/20 to 120% high.  The rib is 12mm tapered to 8mm  to provide a wide sight plane without obstructing the side view.  A brass mid-bead and white front bead are standard as well as Krieghoff Titanium Extended Chokes.  The Top-single can also be configured with the Trap Special Over/Under to make the Trap Special Combo or Pro Trap Special Combo.  Available in 12 Gauge only.

K-80 12 Gauge Pro Sporter Barrel



K-80 Pro Sporter/ACS

The Pro Sporter provides an “All Clay Sports” solution for the shooter who shoots all three major disciplines (Skeet, Sporting Clays and Trap).  Available in a 30″ or 32″ length and ventilated rib 10mm-6mm with a 1mm chamfer on each side.  The rib has and adjustable wheel in the front which allows the shooter to adjust the POI from 50/50 to 70/30 making ideal for all ranges of competition.  The rib comes with brass mid-bead and white front bead. Each barrel features a monoblock with floating barrels with 3″ chrome chambers backbored for low recoil as well as Krieghoff Titanium Extended Chokes.  Available in 12 Gauge only. Can be combined with a 34″ ACS Unsingle to make the ACS Combo.

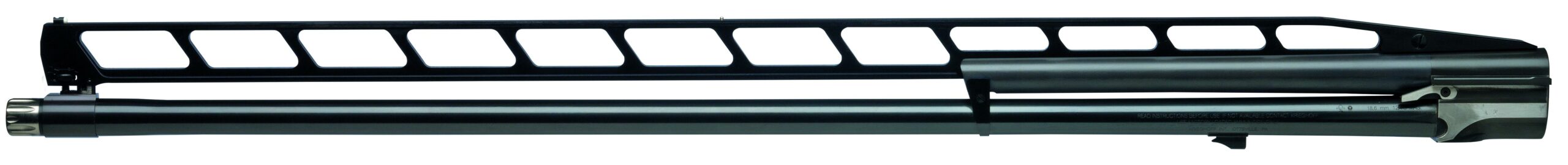

K-80 ACS Unsingle

The ACS Unsingle provides an “All Clay Sports” solution for the Skeet or Sporting Clays shooter who wants a dedicated singles trap barrel with the advantages of a 34″ unsingle barrel.  The vented high rib features an adjustable wheel on the front which allows a shooter to adjust the POI from 60/40 to 100% like the Pro Sporter/ACS O/U barrel.  The rib is 10mm tapered to 8mm to provide a wide sight plane without obstructing the side view designed to deliver the same sight picture with the Pro Sporter/ACS O/U barrel.  A brass mid-bead and white front bead are standard as well as Krieghoff Titanium Extended Chokes. Available in 12 Gauge only. Can be combined with a 30″ or 32″ Pro-Sporter barrel to make the ACS Combo allowing the trap shooter to shoot both singles and doubles with the same receiver and stock.  Unlike the Trap Special Combo the ACS Combo has a slightly lower comb and rib height better suited for Skeet and Sporting Clays.

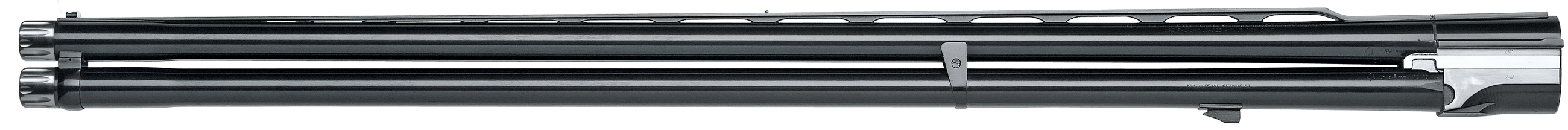

K-80 Tapered Step

The K-80 Tapered Step Barrels are available in 30″ and 32″ lengths in 12 Gauge.  They feature a 12mm-8mm tapered step rib with brass mid-bead and white front bead.  The Tapered Step has floating barrels with chrome chambers in 3″.  The 30″ & 32″ models come with Krieghoff Titanium Extended choke tubes, and fixed choked models are available with IM/F or Skeet/Skeet.

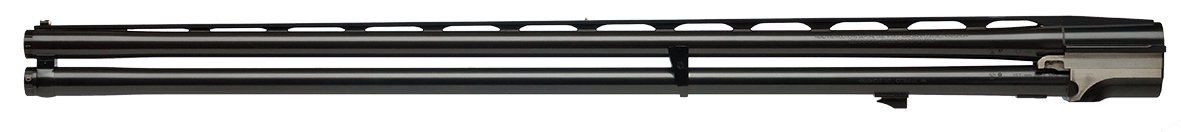

K-80 Sporting/Skeet

(Shown in 20 Gauge)

The K-80 Sporting/Skeet Barrels are available in 28″, 30″ and 32″ lengths in 12 Gauge, and 30″, 32″ lengths in 20 Gauge, 28 Gauge and .410 Bore.  They feature a 10mm-6mm tapered flat rib with brass mid-bead and white front bead.  All gauges have floating barrels with chrome chambers in 3″.  The 12 Gauge and 20 Gauge models come with Krieghoff Titanium Extended choke tubes, while the 28 Gauge and .410 Bore have Krieghoff Extended Steel choke tubes.  The fixed choked model is available with IM/F or Skeet/Skeet.

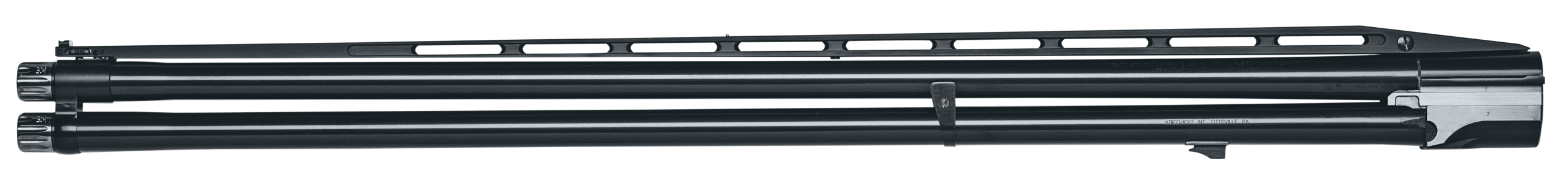

K-80 12 Gauge Pro Sporter Barrel



K-80 Pro Sporter

The K-80 Pro Sporter has a raised ventilated rib 10mm-6mm with a 1mm chamfer on each side.  The rib has and adjustable wheel in the front which allows the shooter to adjust the POI from 50/50 to 70/30 making ideal for all ranges of competition.  The rib comes with brass mid-bead and white front bead. Each barrel features a monoblock with floating barrels with 3″ chrome chambers backbored for low recoil.  The 12 Gauge and 20 Gauge models come with Krieghoff Titanium Extended choke tubes, while the 28 Gauge and .410 Bore have Krieghoff Extended Steel choke tubes.

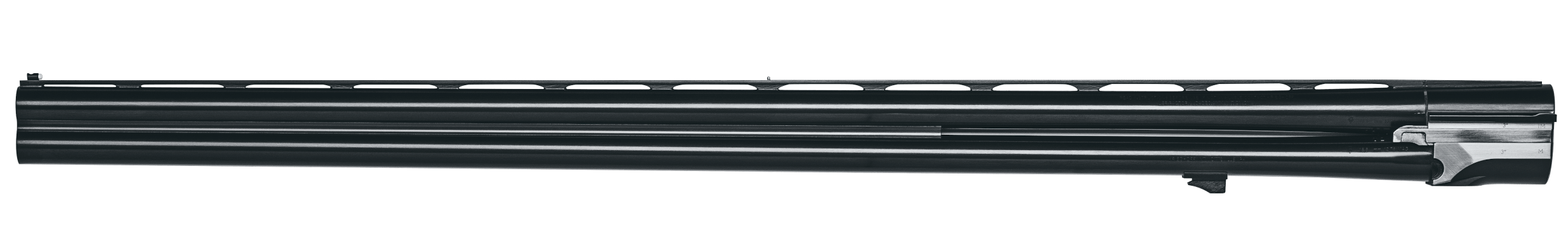

K-80 Parcours

The Parcours is available in 12 Gauge, 20 Gauge and 28 Gauge calibers all with a 3″ Chrome lined chamber.  The soldered side rib allows for thinner barrel wall resulting in a lighter weight for quicker performance and optimal field characteristics.  The 8mm rib is  vented and comes with a brass mid-bead and white pearl front bead to provide a clean sight picture.  The barrel comes standard with fixed Mod & Improved Mod chokes with optional Krieghoff flush-mounted Thin-Wall chokes. The Parcours is also available with fixed improved-mod and full chokes.

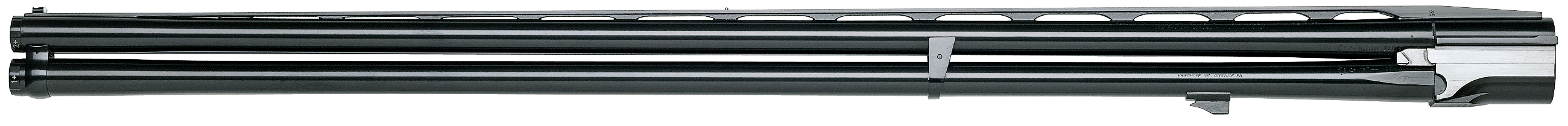

K-20 Sporting

The K-20 Sporting Barrels are available in 30″ and 32″ lengths in 20 Gauge, 28 Gauge and .410 Bore.  They feature a 10mm-6mm tapered flat rib with brass mid-bead and white pearl front bead.  All gauges have floating barrels with chrome chambers in 3″.  All three gauge options come standard with steel extended chokes while the 20 gauge is available with optional titanium chokes.

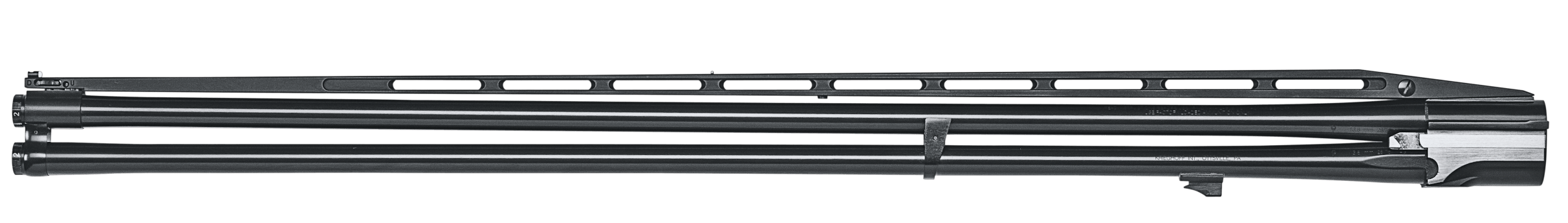

K-20 Pro-Sporter

(Shown in 28 Gauge)

The K-20 Pro-Sporter has a raised ventilated rib 10mm-6mm.  Each barrel has 3″ chrome plated chambers.  The rib has an adjustable wheel in the front which allows the shooter to adjust the POI from 50/50 to 70/30 making it ideal for all ranges of competition.  The rib comes with a brass mid-bead and white pearl front bead. The  20 Gauge model comes with Krieghoff titanium extended choke tubes, while the 28 Gauge and .410 Bore have Krieghoff Extended Steel choke tubes.



K-20 Parcours

The K-20 Parcours is available in 20 Gauge and 28 Gauge calibers all with a 3″ Chrome lined chamber. Both gauges are available in 30″ or 32″ lengths. The soldered side rib allows for a thinner barrel wall resulting in a lighter weight for quicker performance and optimal field characteristics.  The 8mm top rib is a vented and comes with a brass mid-bead and white pearl front bead to provide a clean sight picture.  The barrel comes standard with fixed Mod & Improved Mod chokes or with optional Krieghoff flush-mounted Thin-Wall chokes.

K-80 Shotgun Barrels Specifications

TRAP BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 12ga / 3″ 30″ IM/F Tapered step rib, 12-8mm 55 1/2 3lb 7oz
12ga / 3″ 30″ Choke Tubes (5) Tapered step rib, 12-8mm 57 1/2 3lbz 10oz
12ga / 3″ 30″ Choke Tubes (5) Trap Special High-post, fully adjustable rib, 12-8mm 59 3lbs 11oz
12ga / 3″ 32″ IM/F Tapered step rib, 12-8mm 58 1/4 3lbs 10oz
12ga / 3″ 32″ Choke Tubes (5) Tapered step rib, 12-8mm 59 3/4 3lbs 12oz
12ga / 3″ 32″ Choke Tubes (5) Trap Special High-post, fully adjustable rib, 12-8mm 60 3lbs 12oz
Model Gauge/Chamber Length Chokes Rib Ounces Pounds
Unsingle 12ga / 3″ 32″ Choke Tubes (3) Tapered step rib, 12-8mm 56 1/4 3lb 7oz
12ga / 3″ 34″ F Tapered step rib, 12-8mm 56 1/2 3lb 8oz
12ga / 3″ 34″ Choke Tubes (3) Tapered step rib, 12-8mm 57 1/4 3lbs 9oz
12ga / 3″ 34″ Choke Tubes (3) Trap Special High-post, fully adjustable rib, 12-8mm 58 3lbs 10oz
Model Gauge/Chamber Length Chokes Rib Ounces Pounds
Top Single 12ga / 3″ 34″ Choke Tubes (3) Trap Special High-post, fully adjustable rib, 12-8mm 58 3lbs 10oz
Model Gauge/Chamber Length Chokes Rib Ounces Pounds
Unsingle 12ga / 3″ 34″ Choke Tubes (3) ACS fully adjustable rib, 12-8mm 58 3lbs 10oz

SPORTING/SKEET BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 12ga / 3″ 28″ Choke Tubes (5) Tapered flat rib, 10-6mm 52 1/2 3lbs 5oz
12ga / 3″ 30″ S/S Tapered flat rib, 10-6mm 54 3lbs 6oz
12ga / 3″ 30″ IM/F Tapered flat rib, 10-6mm 54 3lbs 6oz
12ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 57 3/4 3lbs 9oz
12ga / 3″ 32″ S/S Tapered flat rib, 10-6mm 57 3lbs 9oz
12ga / 3″ 32″ IM/F Tapered flat rib, 10-6mm 57 3lbs 9oz
12ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 57 3lbs 9oz

SPORTING/SKEET SMALL BORE BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/2 3lbs 6oz
20ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 55 3lbs 7oz
O/U 28ga / 3″ 30″ Steel Choke Tubes (5)  Tapered flat rib, 10-6mm 52 1/2 3lbs 5oz
28ga / 3″ 32″ Steel Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/4 3lbs 6oz
O/U .410 bore / 3″ 30″ Steel Choke Tubes (5) Tapered flat rib, 9-5mm 56 3lbs 7oz
.410 bore / 3″ 32″ Steel Choke Tubes (5) Tapered flat rib, 9-5mm 56 3lbs 8oz

PARCOURS BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 12ga / 3″ 28″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm  49 3lbs 1oz
12ga / 3″ 30″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 30″ IM/F Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 30″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 32″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 32″ IM/F Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 32″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 34″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
12ga / 3″ 34″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz

PARCOURS SMALL BORE BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
20ga / 3″ 30″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
20ga / 3″ 32″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
20ga / 3″ 32″ Krieghoff Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
O/U 28ga / 3″ 32″ M/IM Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz
28ga / 3″ 32″ Thin-Wall Soldered rib fixed flat rib, 8-6mm 49 3lbs 1oz

FLOATING RIB BARRELS – FOR K-80 PRO SPORTER

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 12ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 12-8mm 59 3lbs 11oz
  12ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 12-8mm 61 2/3 3lbs 14oz

SMALL BORE BARRELS – FOR K-80 PRO SPORTER

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 57 3lbs 9oz
  20ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 64 4lbs
 O/U 28ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 57 3lbs 9oz
  28ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 59 2/3 3lbs 12oz
 O/U .410 bore / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 57 3lbs 9oz
  .410 bore / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 59 2/3 3lbs 12oz

Choke Tubes (CT) available are:

Cylinder (C), Skeet (S), Improved Cylinder (IC), Light Modified (LM), Modified (M), Light Improved Modified (LIM), Improved Modified (IM), Full (F), SuperFull (SF).

All 12 Gauge and 20 Gauge K-80  and K-20 Pro-Sporter models are delivered with Titanium Choke Tubes.

K-80 28 Gauge and .410 Bore models delivered with factory steel chokes.

Both Titanium and Factory Steel chokes fit all K-80 Models. K-20 Sporter models are delivered with factory steel chokes


*All measurements are approximate

K-20 Shotgun Barrels Specifications

SPORTING K-20 BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/2 3lbs 6oz
20ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 55 3lbs 7oz
28ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 52 1/2 3lbs 5oz
28ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/4 3lbs 6oz

PRO SPORTING K-20 BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ Choke Tubes (5) Adjustable rib, 10-6mm 54 1/2 3lbs 6oz
20ga / 3″ 32″ Choke Tubes (5) Adjustable rib, 10-6mm 55 3lbs 7oz
28ga / 3″ 30″ Choke Tubes (5) Adjustable rib, 10-6mm 52 1/2 3lbs 5oz
28ga / 3″ 32″ Choke Tubes (5) Adjustable rib, 10-6mm 54 1/4 3lbs 6oz
.410 bore / 3″ 30″ Choke Tubes (5) Adjustable rib, 10-6mm 54 3/4 3lbs 7oz
.410 bore / 3″ 32″ Choke Tubes (5) Adjustable rib, 10-6mm 56 3lbs 8oz

PARCORS K-20 BARRELS

Model Gauge/Chamber Length Chokes Rib Ounces Pounds
O/U 20ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/2 3lbs 6oz
20ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 55 3lbs 7oz
28ga / 3″ 30″ Choke Tubes (5) Tapered flat rib, 10-6mm 52 1/2 3lbs 5oz
28ga / 3″ 32″ Choke Tubes (5) Tapered flat rib, 10-6mm 54 1/4 3lbs 6oz

*All measurements are approximate

STEEL SHOT GUIDELINES

All K-80 and K-20 barrels with choke tubes that are proofed in Germany for Steel Shot have the “Lily” Proof Mark. (See Example to the right, first mark is the German Proof House, the bottom mark is the Steel Shot Proof mark).
To avoid damage to your choke ramp, never shoot the following ammunition with barrels that do not have the steel shot proof:

  • Steel shot greater than US #4 (3.5mm) with 12 Gauge
  • Steel Shot greater than US #6 (2.8mm) with 20 Gauge
  • Any magnum steel shot cartridge, no matter what shot size or steel shot cartridges with a case length of 76mm/3″ or larger.
  • Steel shot cartridges marked with 21755 psi or 1500 bar.

Even for steel shot proofed barrels, if a maximum shot size of greater or equal to US #2 (4 mm) is used, Modified Choke (.05mm) or less is manditory.

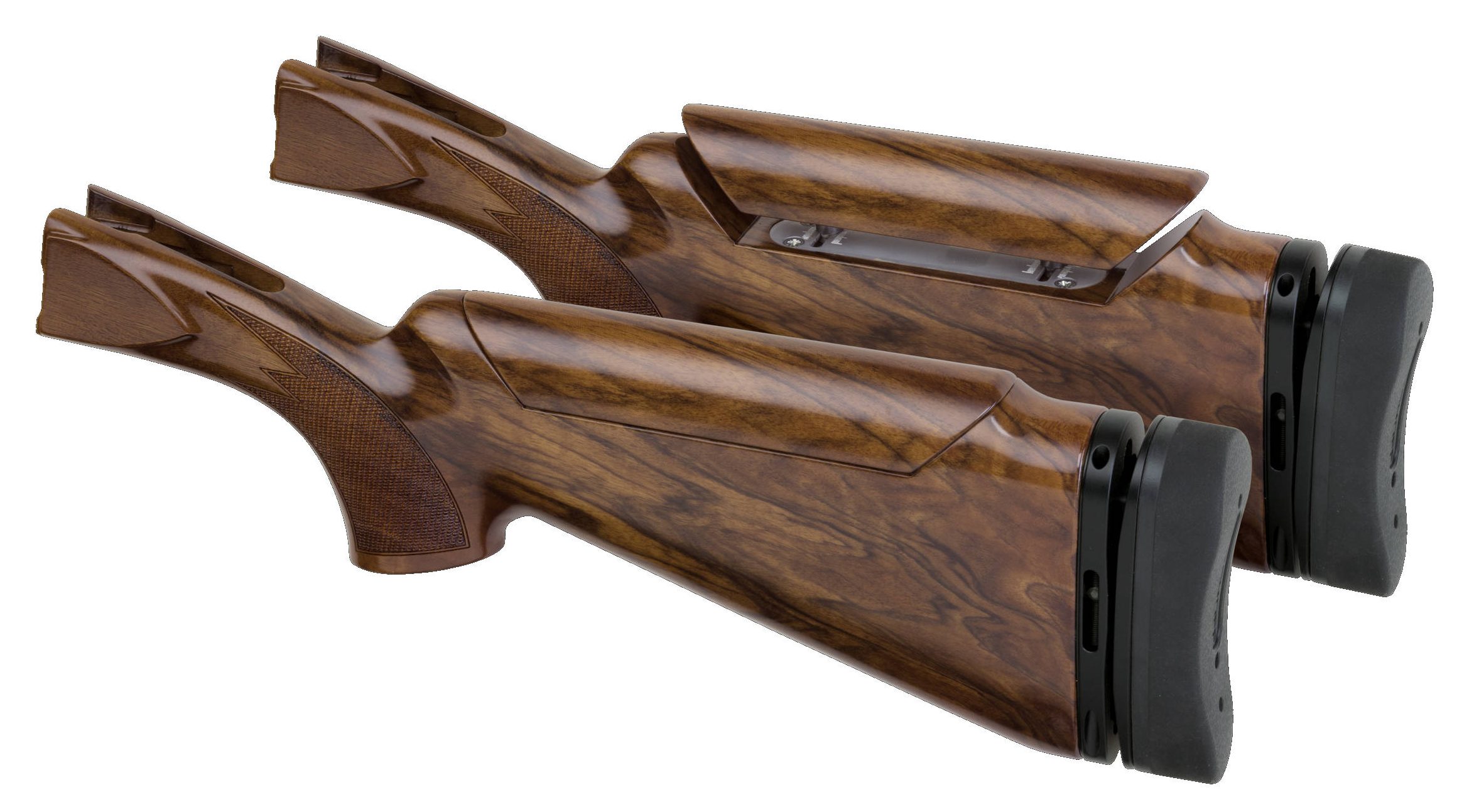

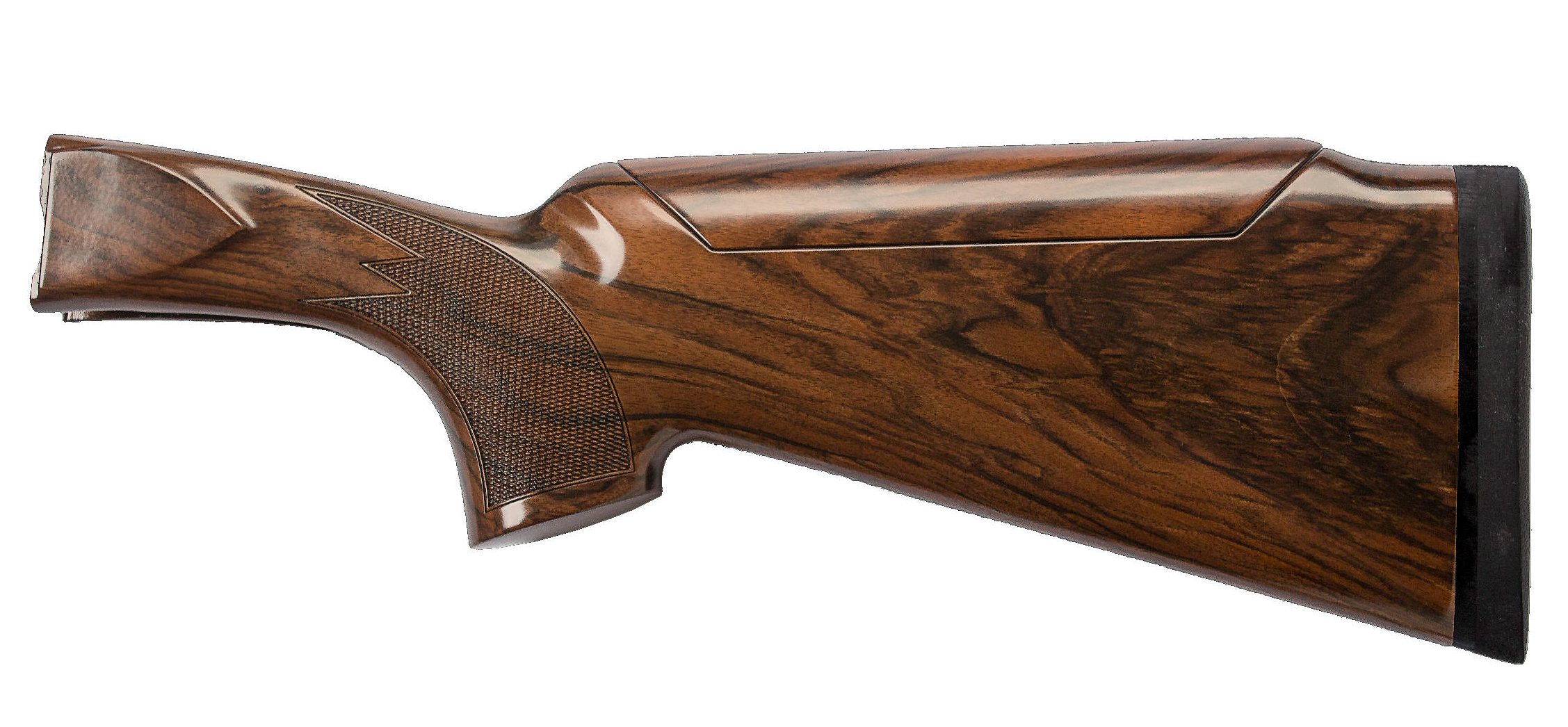

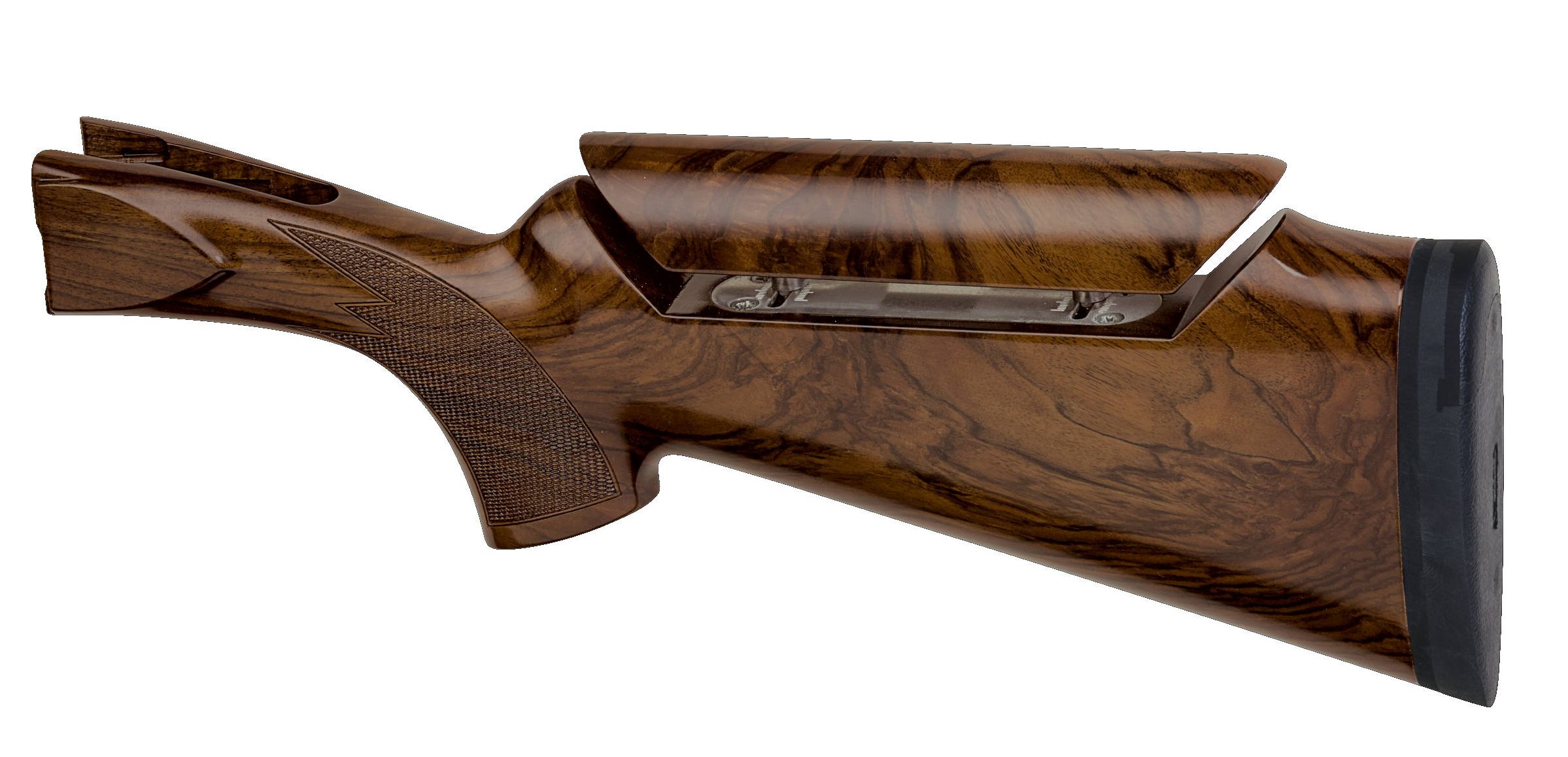

Shotgun Stock Dimensions

It is not without reason that every shooter is familiar with Ludwig Krieghoff’s observation that ‘you shoot with the barrels, you hit with the stock’. He also developed Krieghoff’s patented stock fitting process, which to this day forms the basis of the K-80’s customized stocks. But even the K-80’s standard stock designs are optimized for the respective disciplines. Those who want the flexibility of using their K-80 for various disciplines can easily change the stock and forearm. The original forearm can also be used with all interchangeable barrels. Trap and sporting clay shooters are becoming more and more enamored with adjustable comb stocks. Their vertical and horizontal adjustability enables them to be perfectly adapted to suit personal needs.

The precise checkering and the ergonomic hand-shaped pistol grip are part and parcel of the functional details of stock creation. Even the recoil pad is designed to match the requirements of the respective discipline. The trap recoil pad is specially designed for ‘head up’ shooting. The sporting recoil pad is designed for fast gun mounting. In addition to working like a charm, the stock, which is made from natural wood, contributes significantly to the aesthetic charm of the K-80. Six different grades of wood are available for the stock. The particularly resilient epoxy surface permanently and attractively brings out the warm colors and the fine grain of the walnut.

Type Comb Dimensions Comb Offset Cast at Heel Cast at Toe L.O.P. Configuration
Drop at Front Drop at Rear Drop at Recoil Pad

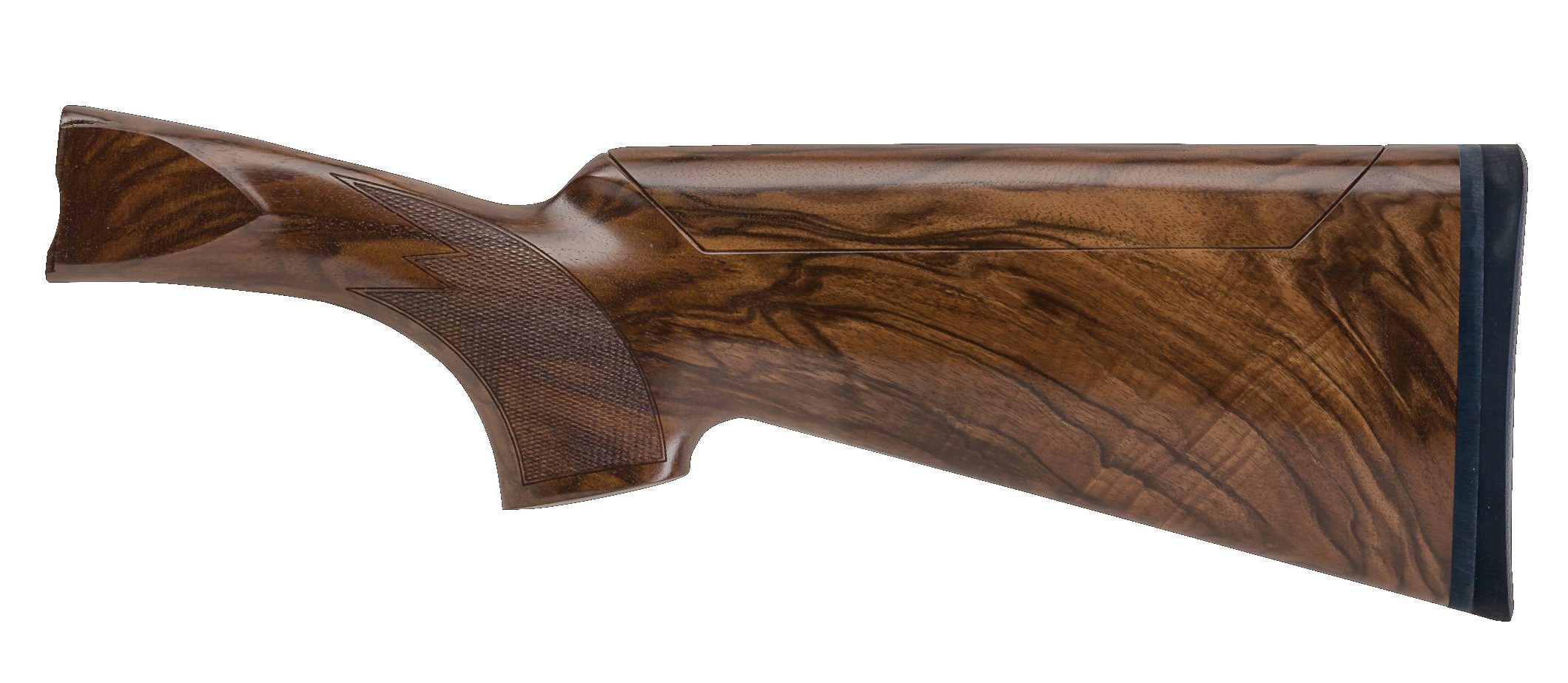

K-80 #3 Sporting 1-9/16″ 2″ 2-5/8″ 3/8″ 3/16″ 1/2″ 14-5/8″ R or L Handed
K-80 #3 A ProSporter 1-9/16″ 2″ 2-5/8″ 3/8″ 1/8″ 1/2″ 14-3/8″ R or L Handed
K-80 Parcours 1-5/8″ 2″ 1/4″ 1/4″ 3/8″ 14-3/8″ R or L Handed
K-80 #6 Trap Stock 1-13/16″ 1-13/16″ 2″ 3/8″ 1/8″ 3/8″ 14-1/2″ R or L Handed
K-80 #6 ACS 1-13/16″ 1-13/16″ 2-1/8″ 3/8″ 1/8″ 3/8″ 14-1/2″ R or L Handed
K-80 #6 Trap Special 1-5/8″ 1-5/8″ 2-5/8″ 1/2″ 1/8″ 1/2″ 14-1/2″ R or L Handed
K-80 Victoria 1-5/8″ 1-7/8″ 2-1/8″ 3/8″ 3/4″ 14″ R or L Handed

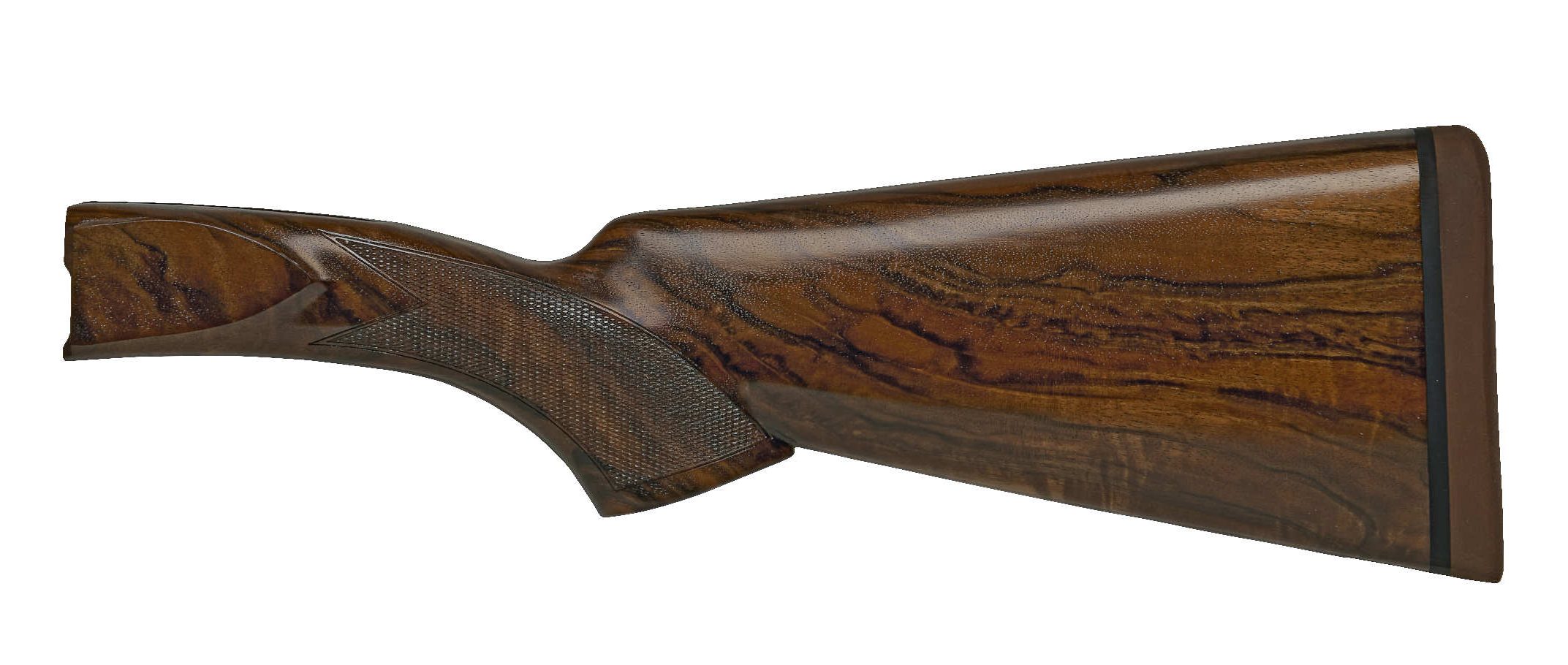

K-20 Parcours – POW 1-9/16″ 2″ 3/16″ 3/8″ 14-1/2″ R or L Handed
K-20 #3 Sporting 1-1/2″ 2-1/4″ 2-5/8″ 3/16″ 1/4″ 14-3/8″ Neutral
K-20 #3 ProSporter 1-1/2″ 2-1/8″ 2-3/8″ 1/4″ 1/8″ 5/16″ 14-3/8″ R or L Handed
K-20 Victoria 1-5/8″ 1-7/8″ 2-1/8″ 3/8″ 3/4″ 14″ R or L Handed

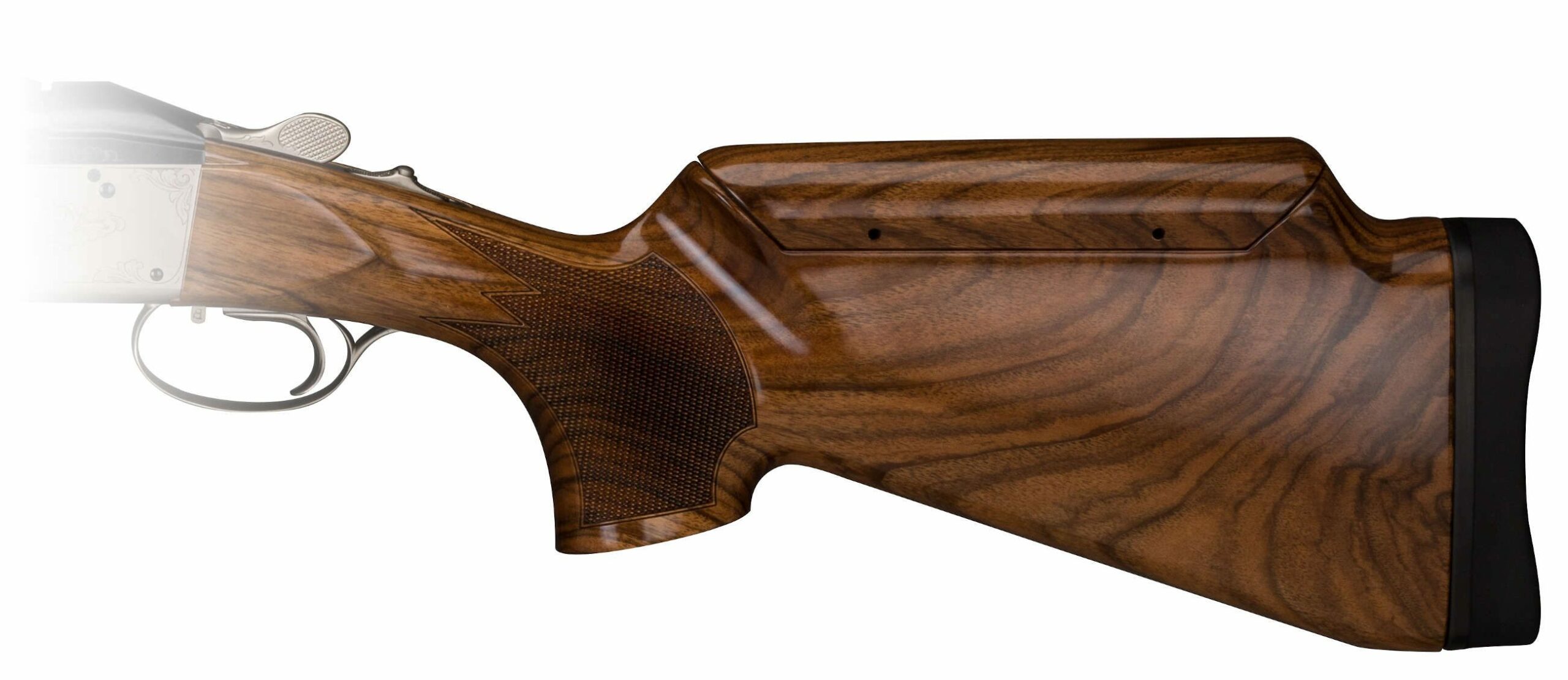

KX-6 Special 1-5/8″ 1-5/8″ 2-3/8″ 3/8″ 1/4″ 3/4″ 14-5/8″ R or L Handed
Semprio
Classic
Classic “Big Five”
Hubertus
Optima
Trumph

Gunstock Terminology

Term Definition
Beavertail A wider, usually flattened front stock common in Trap and Skeet.
Bore Line A datum line concentric with the shotgun/rifle bore and extending axially to all points necessary for stock reference measurements.
Burl A type of wood where the grain of the wood has small swirls and knots that produce an attractive and desired look.
Cant The angle of the butt of the stock, rotated around a line parallel to the bore line, referenced to zero degrees if pointing vertical to the ground.
Cast (or Offset) The distance from the center of the butt to the Sight Line.
Cast off The distance from the center of the butt to the Sight Line, to the right side as seen from the rear.  Used for shooting from the right shoulder.
Cast on The distance from the center of the butt to the Sight Line, to the left side as seen from the rear.  Used for shooting from the left shoulder .
Checkering A diamond-like pattern in the wood, plastic or metal components of a firearm for improving grip or ornamentation.
Checkering line count (LPI) A method of expressing the size of the diamonds in a checkering pattern, expressed in lines per inch The higher the number, the finer the pattern; the lower the number, the coarser.
Comb The ridge at the upper forward part of the butt stock behind the grip section.  Can be a separate piece with adjustments up.
Drop Drop is the vertical distance from the Sight Line to the comb, or heel of the stock.
Drop at Comb The distance from the Sight Line to the comb.
Drop at Heel The distance from the Sight Line to the heel of the butt.
Feathering A type of wood grain where their appears to be feathers or translucent striations within the finish of the wood giving it a three dimensional appearance.

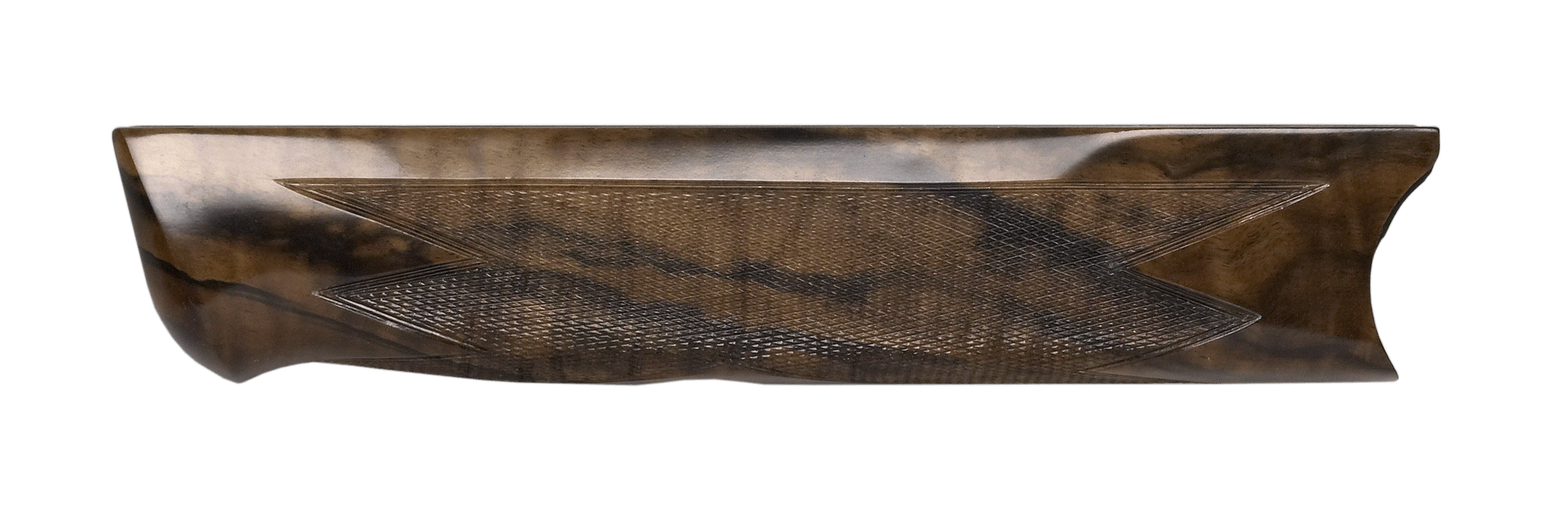

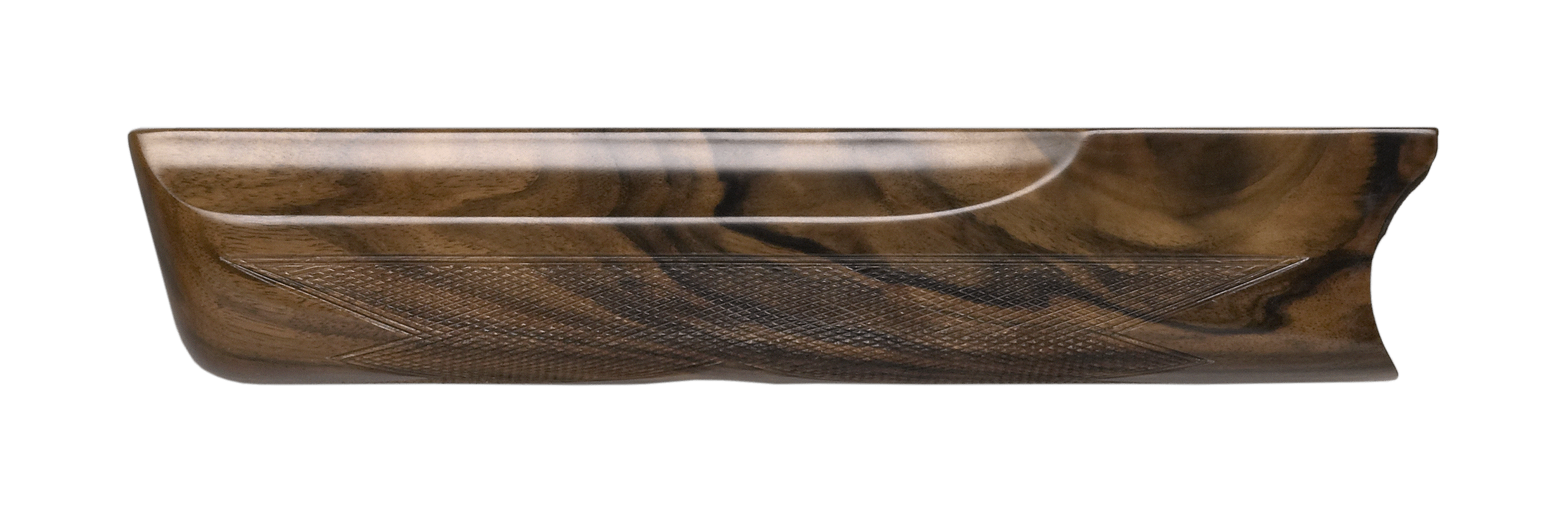

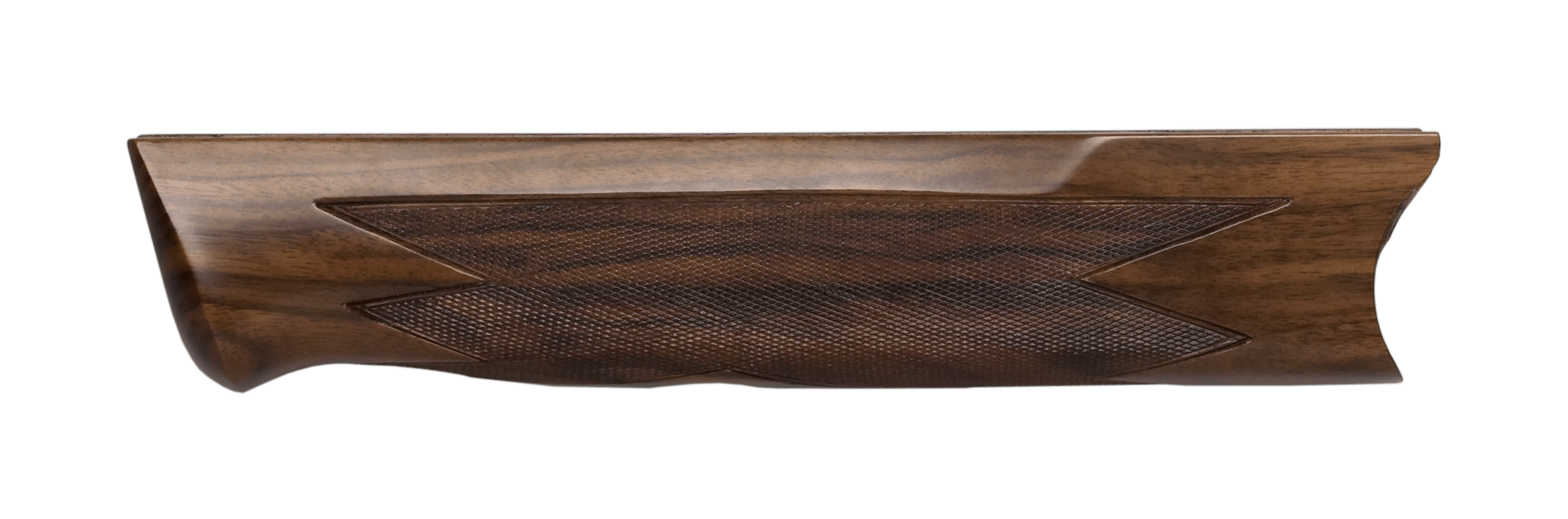

Forearm (or Fore-end) The forward part of a two-piece stock, attached to the barrel(s).
French Checkering A type of gunstock line engraving where lines are omitted at regular intervals. Also called Skip-line.
Girth  The smallest circumferential dimension at the pistol grip.
Heel The part of a rifle or shotgun stock at the top of the butt end.
LOP (Length of Pull) The distance from the center of the trigger to the center of the Buttplate or recoil pad.
Mannlicher A full length rifle stock which extends from the butt to the muzzle,
Monte Carlo A stock with a raised comb to bring the eye in alignment with the sight,
Oil Finish A type of finish made with layers of rubbed oil (usually linseed oil).
Open Grain An oil finish where the grain of the wood retains some of the crevices and creases, vs a closed grain finish where all of the holes and crevices have been filled in for a smooth surface.
Palm Swell An enlarged part of the grip to fill the palm area of the hand, on the right side for a right-handed shooter.
Parallel Comb A comb that is parallel with the rib of the barrel from the front to the rear.  (Krieghoff #6).
Pistol Grip The part of the buttstock behind the trigger shaped similar to the grip of a pistol to afford a better grasp.  Most common on target guns.
Pitch  Pitch is an expression used to indicate the relationship of the Sight Line to the plane of the Buttplate (pad).
Poly Finish A two-part sprayed on finish applied in multiple coats to achieve a durable and lustrous finish.
Prince of Wales A type of gunstock with an English or Straight style grip with a small pistol grip for better purchase.
Recoil Pad A butt plate, usually of rubber, to reduce the sensible recoil of shoulder firearms.
Schnabel A German term for a hook shaped knob at the forearm tip of a stock,
Sight Line The datum line parallel and extending from the front of the rib to the end of the stock.
Skip-Line Checkering (or French) A type of gunstock line engraving where lines are omitted at regular intervals. Also called Skip-a-line.
Straight Grip (or English Stock) A type of gunstock with a straight-line grip from the receiver to the end of the buttstock, most common on field or hunting guns.
Thumbhole Any stock having a contoured hole in the grip area to accommodate the thumb of the trigger hand,
Toe The bottom (lower) end of a Buttplate and adjacent portion of the stock on a shoulder firearm.
Whelan (Fishbelly Stock) A rifle stock developed by Colonel Townsend Whelan which features a forward sloping comb and cheekpiece.
Wrist The smallest part of the buttstock where the grip meets the firearm action.

STOCKS AND WOODSETS

K-80 #3 Sporter Stock

The Sporter Stock has an adjustable comb and is designed for either pre-mounted shooting or shooting from a gun down position.  It's been designed for either a right-handed or left-handed shooter with appropriate cast-on and cast-off to put the barrel and rib under the shooting eye.  The pistol grip with palm swell places the wrist in a controlling angle minimizing fatigue and stress during recoil.  It comes standard with a kick-eze recoil pad with reinforced heel for snagless mounts and less recoil. The easy adjust-ability of the comb along with the ability to make a flawless mount, make this a top choice among sporting and FITASC shooters.


K-20 Parcours POW

The K-20 Parcours POW or Prince of Whales features a subtle pistol grip with the clean lines of a hunting stock.  It comes standard with an Oil finish and slight open grain for a traditional hunting look and feel. The recoil pad is a kick-eze with reinforced heel for quick mounts necessary in the field.


K-20 Sporting/Skeet Stock

The K-20 Sporting/Skeet Stock has a neutral cast and has a slight drop to the rear of the stock making it a great all around choice for sporting, skeet and in the field. A adjustable comb can be added by our expert woodsmiths if the customer should desire one.


Trap Special Buttstock

The Trap Special buttstock accommodates the higher rib height of the Trap Special and Pro Trap barrel ribs, and has a rollover parallel comb to bring the eye in line with the higher rib. It took many years and influence from some very prominent shooters such as Harlan Cambell Jr and Kaye Ohye to develop this stock. Krieghoff's intention was to have a factory stock that fits and feels to the majority of the shooters, like a custom stock without having to go through the process of purchasing a custom stock. With the adjust-ability of the factory Krieghoff comb and optional adjustable butt plate, the fitting options of this stock are almost endless.


K-80 & K-20 ProSporter

With the K-80 and K-20 Pro-Sporter comes a higher rib. With a higher rib also comes a need for a higher stock. The Pro-Sporter stock allows the shooter to keep their neck in a more erect position reducing the feel of neck fatigue. Having the shooters head in a more erect position also allows the shooters field of view to be increased allowing the shooter to focus on the target more easily. Less neck fatigue allows the shooters to shoot further into those long tournaments and shoot offs.


K-80 ACS

The K-80 comes a higher rib. With a higher rib also comes a need for a higher stock. The ACS stock allows the shooter to keep their neck in a more erect position reducing the feel of neck fatigue. Having the shooters head in a more erect position also allows the shooters field of view to be increased allowing the shooter to focus on the target more easily. Less neck fatigue allows the shooters to shoot further into those long tournaments and shoot offs. The difference between the ACS stock and the Pro-Sporter stock is that the ACS stock has a parallel comb while the Pro-Sporter stock has drop to it. The main benefit to a parallel comb stock is that it always allows you to see the same sight picture even with an inconsistent mount.


K-80 Parcours

With our newest and most evolving configuration in the K-80 model comes a stock that has to live up to a life of competition and field hunting. Sporting Clays and FITASC shooters love how quickly the gun mounts to just the right spot in their shoulder while the field hunter loves the reduced weight of the stock for those long tiring days in the field. The K-80 Parcours weighs in at just over 8 lbs, that's almost a full pound lighter then the popular sporting model. Half of that weight loss is from the design of the slimmer Parcours stock and forearm. The Parcours stock also has an adjustable comb to achieve that perfect fit that competition shooters demand.

Also in the Parcours family is the K-80 Victoria. For this stock Krieghoff went back to the drawing boards and sought insight from some of the worlds top female shooters such as Kayle Browning, Katie Fox and Rachel Carrie to make a stock that is truly made to fit a women's body.  A purpose-built stock with a shorter length of pull, the appropriate pitch and cast, and a smaller tailored palm swell that fits the elegance of the female hand lead to a smooth instinctive aim and precise shooting for all situations.


K-20 Parcours With  Adjustable Comb

The K-20 Parcours with an adjustable comb is very similar to the K-80 Parcours. While weighing in around 7lbs, the K-20 Parcours makes a great field gun whether you are hunting Pheasants in the Midwest or Quail in the south. Again, like the K-80 Parcours around half of the weight reduction comes from the stock and forearm's slim design.

Also in the Parcours family is the K-20 Victoria.  Light, graceful and carefully designed for the female shooter, the K-20 Victoria features a stock that is a natural fit to a women's composition and hands. The Victoria has a shorter length of pull, smaller grip and more cast and drop along with our Victoria checkering which adds an elegant flow to the stock and forearm.

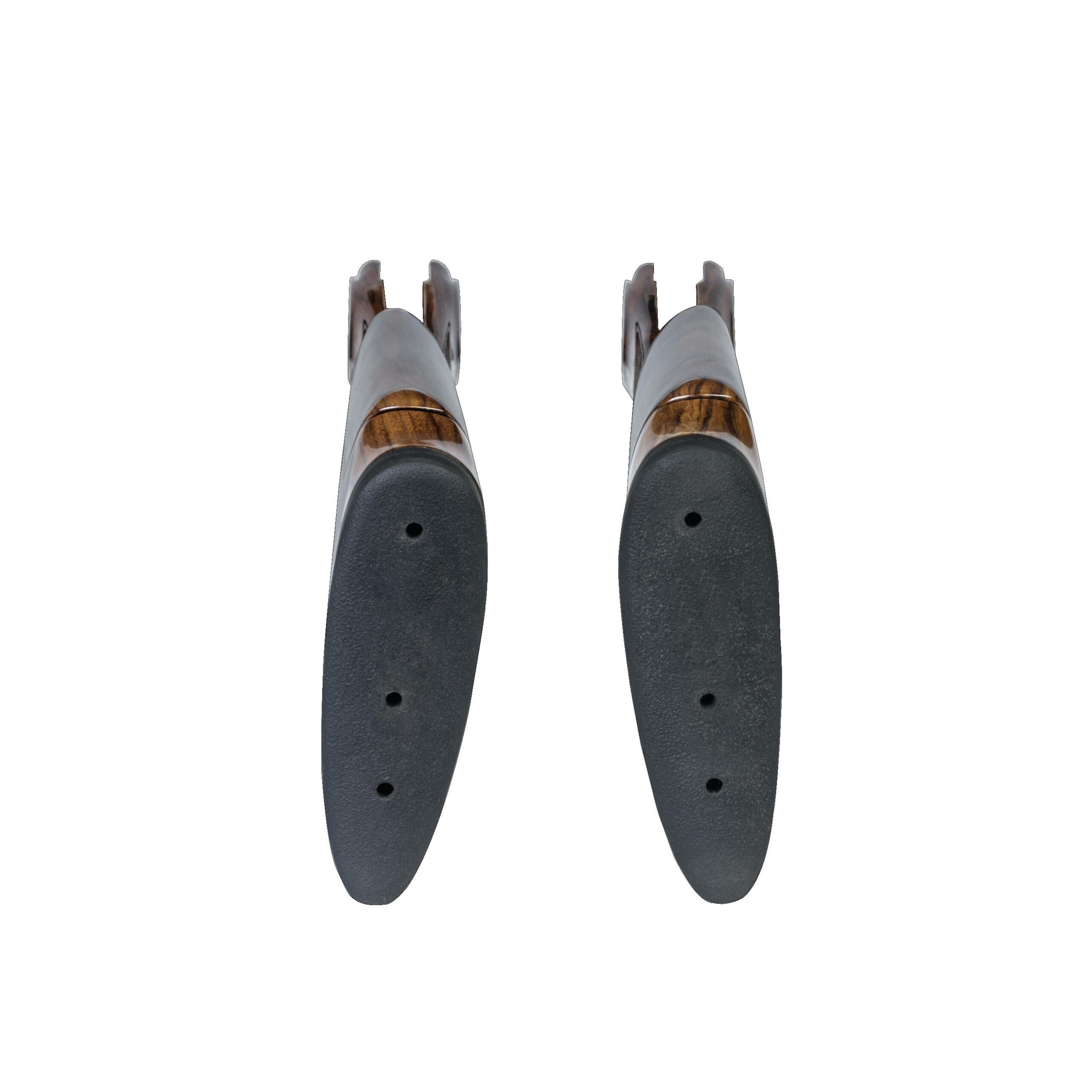

Left-hand and Right-hand Standard Stocks

Krieghoff shotguns come standard with the choice of either a "right-hand" or "left-hand" stock allowing for customizing stock fit without going to a full custom stock.  The cast and pitch are evident in the comparison as seen from the rear.  The heel is slightly off center, the toe of the recoil pad is tapered in towards the body, and the comb is cast to put the shooters eye over the rib.


Trap Forearm

The trap forearm comes standard on the Trap and Skeet models for the K-80 and K-20.


Schnabel Forearm


Parcours Forearm


User Manuals

Price Lists

Catalogs
